PIN Pad Mode Reference
In the PIN Pad mode a numeric keypad is displayed for user input, for example:

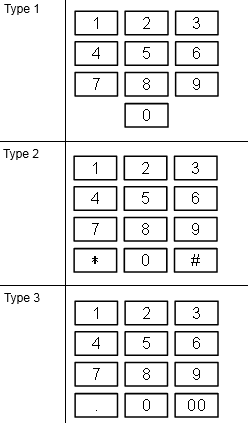

PIN Pad Type
Select the PIN pad type from one of the following:
Key Layout

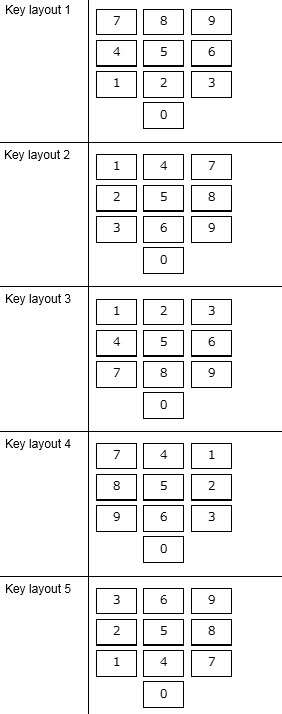

Select the key layout from one of the following:
Image Design
Define up to three PIN Pad designs. Each design defines the images used for normal and button pushed displays in the following layout:
Below is an example of a normal image followed by a corresponding keys pushed image:

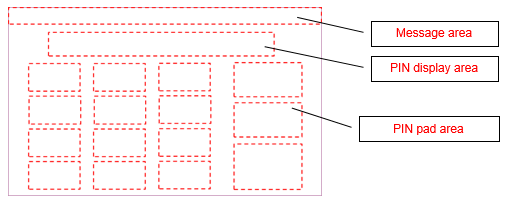

Message Area:
After entering PIN pad mode, the initial message area from the normal image is shown. When an error occurs, the message area from the keys pushed image is shown. The message area size is 800 x 55 dots.
PIN display area:
The characters displayed when pressing a (0~9, *, # and .) are included in the normal image. The display area size is 665 x 74 dots.
The PIN code display image size is 49 x 66 dots. The location of this area is (68, 55) from the top left corner.
The size and location of each PIN code:
| PIN code | Size (w * h) | Location (x,y) |
|---|---|---|
| 0 | 49 * 66 | 72, 59 |
| 1 | 49 * 66 | 121, 59 |
| 2 | 49 * 66 | 170, 59 |
| 3 | 49 * 66 | 219, 59 |
| 4 | 49 * 66 | 268, 59 |
| 5 | 49 * 66 | 317, 59 |
| 6 | 49 * 66 | 366, 59 |
| 7 | 49 * 66 | 415, 59 |
| 8 | 49 * 66 | 464, 59 |
| 9 | 49 * 66 | 513, 59 |
| * | 49 * 66 | 562, 59 |
| # | 49 * 66 | 611, 59 |
| . | 49 * 66 | 660, 59 |
PIN pad area:
Button images are included in the normal image. Pushed button images are included in the button pushed image. When a button is pushed, the corresponding button image is displayed.
The size and location of each button:
| Buttons | Size (w * h) | Location (x,y) |
|---|---|---|
| 0 | 174 * 66 | 217, 384 |
| 1 | 174 * 66 | 30, 147 |
| 2 | 174 * 66 | 217, 147 |
| 3 | 174 * 66 | 404, 147 |
| 4 | 174 * 66 | 30, 226 |
| 5 | 174 * 66 | 217, 226 |
| 6 | 174 * 66 | 404, 226 |
| 7 | 174 * 66 | 30, 305 |
| 8 | 174 * 66 | 217, 305 |
| 9 | 174 * 66 | 404, 305 |
| '*' or '.' | 174 * 66 | 30, 384 |
| # or 00 | 174 * 66 | 404, 284 |
| Clear | 174 * 89 | 596, 147 |
| Cancel | 174 * 89 | 596, 254 |
| Enter | 174 * 89 | 596, 361 |
PIN Pad Image Settings
Each image design requires the settings:
| Item | Description |
|---|---|
| Image design number | Image design number 1..3 |
| PIN pad normal image | Image data includes normal buttons, initial message, PIN code display fonts and background image |
| PIN pad buttons pushed image | Image data includes pushed buttons, error message and background image |
| PIN pad type | Keypad type 1..3 |
| Key layout | Round Robin or specific key layout 0..5 |
PIN Operation settings
Before entering PIN pad mode, the images and settings must be stored. The following options must be set when entering PIN pad mode.
| Item | Description |
|---|---|
| PIN Pad Image | Select the PIN pad image design from pattern 1..3 |
| PIN Bypass | Set PIN Bypass=1 to disable the minimum digits check |
| Minimum digits | If the PIN input is below Minimum the error message is shown and Min Digit Error is reported |
| Maximum digits | If the PIN input exceeds Maximum the error message is shown and Max Digit Error is reported. The maximum number of digits is 12 |
| Number Hidden Mode | If this mode is enabled, PIN input codes are shown for 500msec and hidden by *. If the next PIN is input within 500msec, the previous value is hidden by * after input. |
| Enter Message id | MessageBox screen to show after Enter |
| Cancel Message id | MessageBox screen to show after Cancel |
PIN Pad Mode Return
UI Event Data reports the list of selected keys as follows:
| Item | Value |
|---|---|
| Key Input | 0x00: Cancel (PIN values = 0xF) 0x01: Enter 0x02: Min Digit Error (PIN values = 0xF) 0x03: Max Digit Error (PIN values = 0xF) |
| List of PIN codes in the order selected (1..13) | 0 to 9 0x0A = * 0x0B = # 0x0C = . |
In addition to sending the report:
| Button | Function |
|---|---|
| 0 to 9 | Store pushed button number |
| * . # 00 | Store pushed character 00: Store 00 and show 2 digits 00 |
| Clear | Clear input PIN code and clear PIN display area e.g. If Clear button is pushed after 1, 2, 3 are input, all 1, 2, 3 are cleared. |
| Enter | Condition 1: Input PIN code digits are within (Max, Min) digit setting: Output PIN code and exit from PIN pad mode to Normal mode. Condition 2: Input PIN code digits are below (Min) digit setting: Show error message for 2 seconds and exit from PIN pad mode to Normal mode with Min Digit Error report |
| Cancel | Issue Cancel Report and exit from PIN pad mode to Normal mode. |
PIN Operation logic
API Reference
| Function | Description |
|---|---|
| initializePinPad | PIN Pad settings |
| writeRomImage | Tablet write ROM functions |
| setOperationMode | Select PIN Pad mode |
Code illustration
Upload Image
Requires image descriptor:
romStartImageData = initializePinPad(encodingMode, pushed, PINPAD_IMAGE_NUM, PINPAD_TYPE, PINPAD_LAYOUT);
Start PIN Pad mode
OperationMode_PinPad pinPadMode{ PINPAD_IMAGE_NUM,
0,
m_minDigits,
m_maxDigits,
m_hideNumbers ? 1u : 0u,
PINPAD_LAYOUT,
0,
0 };
OperationMode opMode = initializePinPad(pinPadMode);
m_tablet.setOperationMode(opMode);
Receive the UI Event
Decode the UI Event data from ReportHandler
onReport(EventDataPinPad & e)
{
switch (e.keyInput)
{
case InputEnter:
m_pinPad = savePin(e);
case InputCancel:
case InputMinDigit:
case InputMaxDigit:
PostMessage(m_hWnd, WM_PINPAD_EVENT, e.keyInput, 0);
}
}
...
// Dialog callback
case WM_PINPAD_EVENT:
switch (wParam)
{
case InputEnter:
{
pin = getSavedPin();
}
...
