Test signature capture
To test signature capture use any of the following methods:
Capture Analyser
This test program is installed as part of the Signature SDK and started from the Start menu.
It can also be downloaded here: Capture Analyser
The test is a standalone application which does not use the Signature SDK COM components.
Please note that the Analyser download zip file contains 2 DLLs which must be downloaded into the same directory as FlCaptureAnalyser.exe, otherwise the app will not work.
Start...Wacom Signature SDK...Capture Analyser
To test signature capture:
Service...Test Capture...(select the service name to match the capture device)
- signpad connects to an STU device
- wintab connects to a Wacom tablet through the wintab driver, e.g. Intuos, DTU-1031X

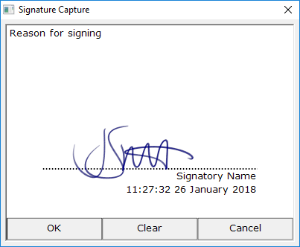

A successful test will display the signature capture window:
Further menu options may be used by technical support for troubleshooting as required.
